Gantry-Type Rock Wool Continuation Machine
Approx. 420 m/h; 50–200 mm material thickness.
View specifications →
Automation for color steel production
Machines built around your production line.
Automatic rock wool feeding, panel and purlin stacking, and purpose-built welding equipment for color steel and steel-structure manufacturers.
New lines or retrofit projectsConfigured to product and layoutExport project communication
FeedingRock wool and panel transfer
StackingSandwich panels and C/Z purlins
WeldingPurlin plates and tie rods
What we make
These are not general-purpose robots. They are dedicated machines for repeated handling and welding steps inside color steel, sandwich panel and steel-profile production.
- Rock wool placement
- Panel line transfer
- C/Z purlin stacking
- Steel component welding
Featured machine · 41-second video
See the panel pickup, turnover and stacking sequence.
The automatic gantry flipping and stacking machine uses a four-axis servo gantry and 24-cup vacuum frame to handle 4–15 m polyurethane (PU) sandwich, corrugated and cleanroom panels, with panel thicknesses of 50–200 mm at the end of a production line.
Actual CSM machine footage. The video shows the coordinated gantry, lifting frame, conveyors and turnover section; final tooling and timing are configured for each line.
View this machine’s specificationsMachine focus 01

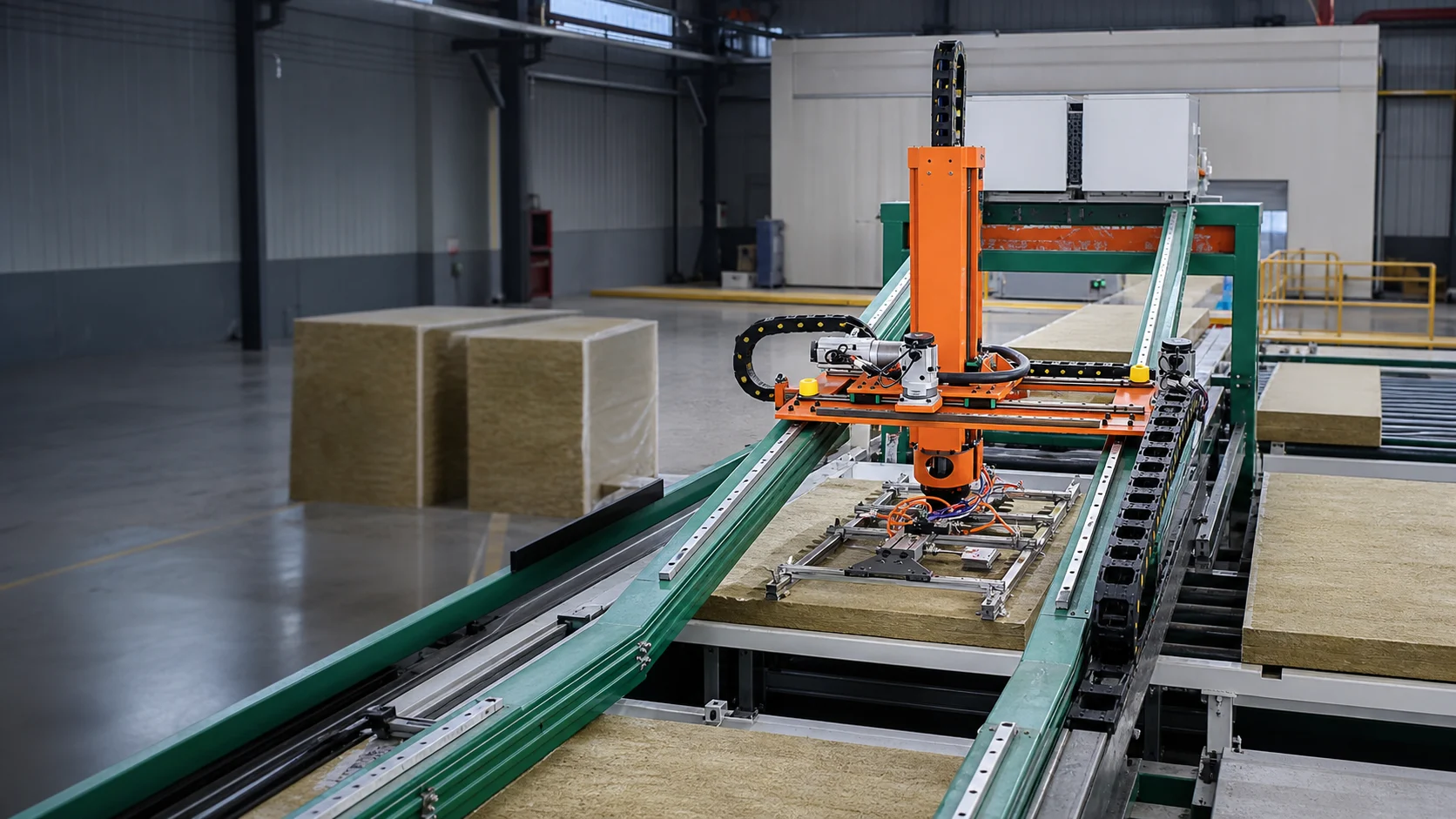

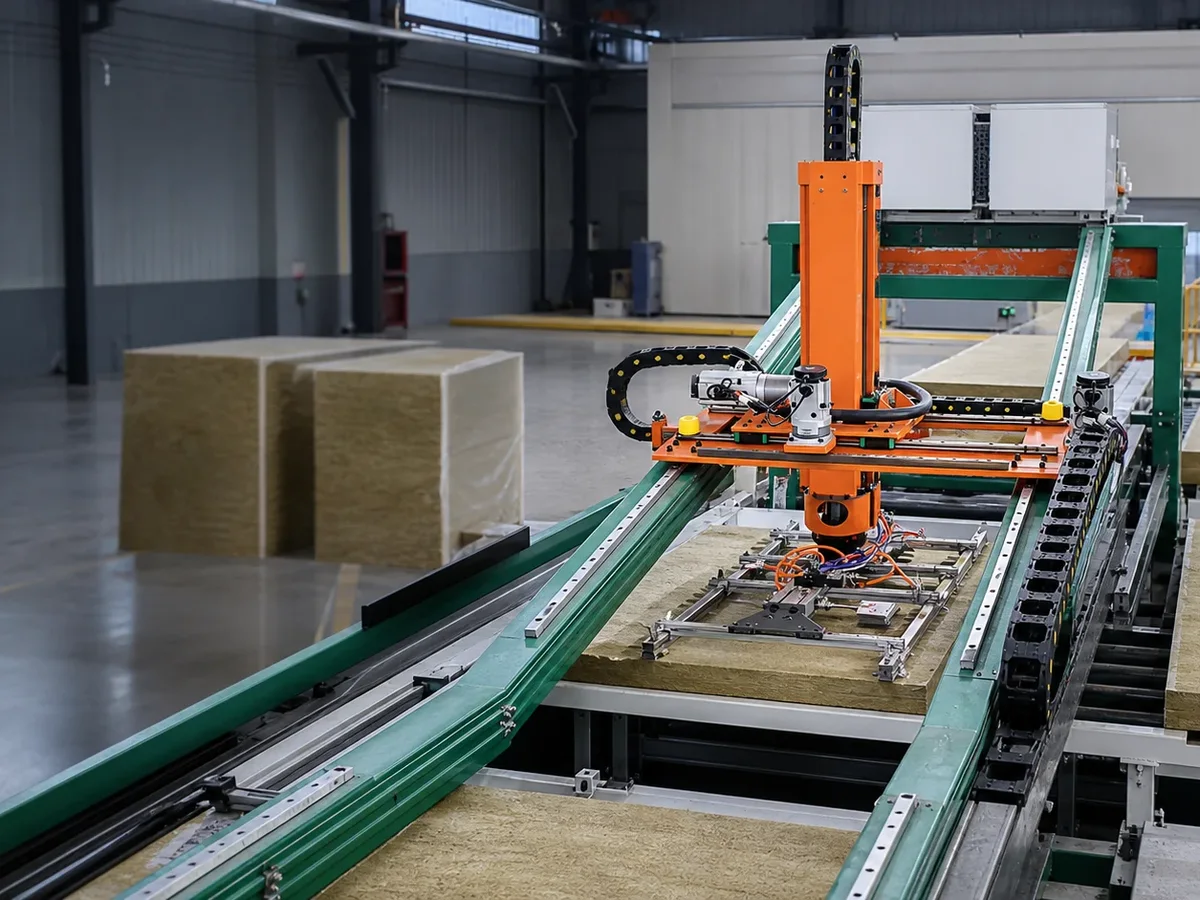

Gantry-Type Rock Wool Continuation MachineApprox. 420 m/h continuous placement for 50–200 mm rock wool.Rock wool handling
Automate the repetitive placement step.
The PPT baseline supports 950 and 1150 mm material formats, 50–200 mm thickness and an operating speed of approximately 420 m/h. Final end tooling and interface dimensions are matched to the production line.
Review the full specification- Material
- Rock wool insulation
- Control
- Wecon PLC + 7-inch HMI
- Power
- 380 V / 50 Hz
Prototype evidence

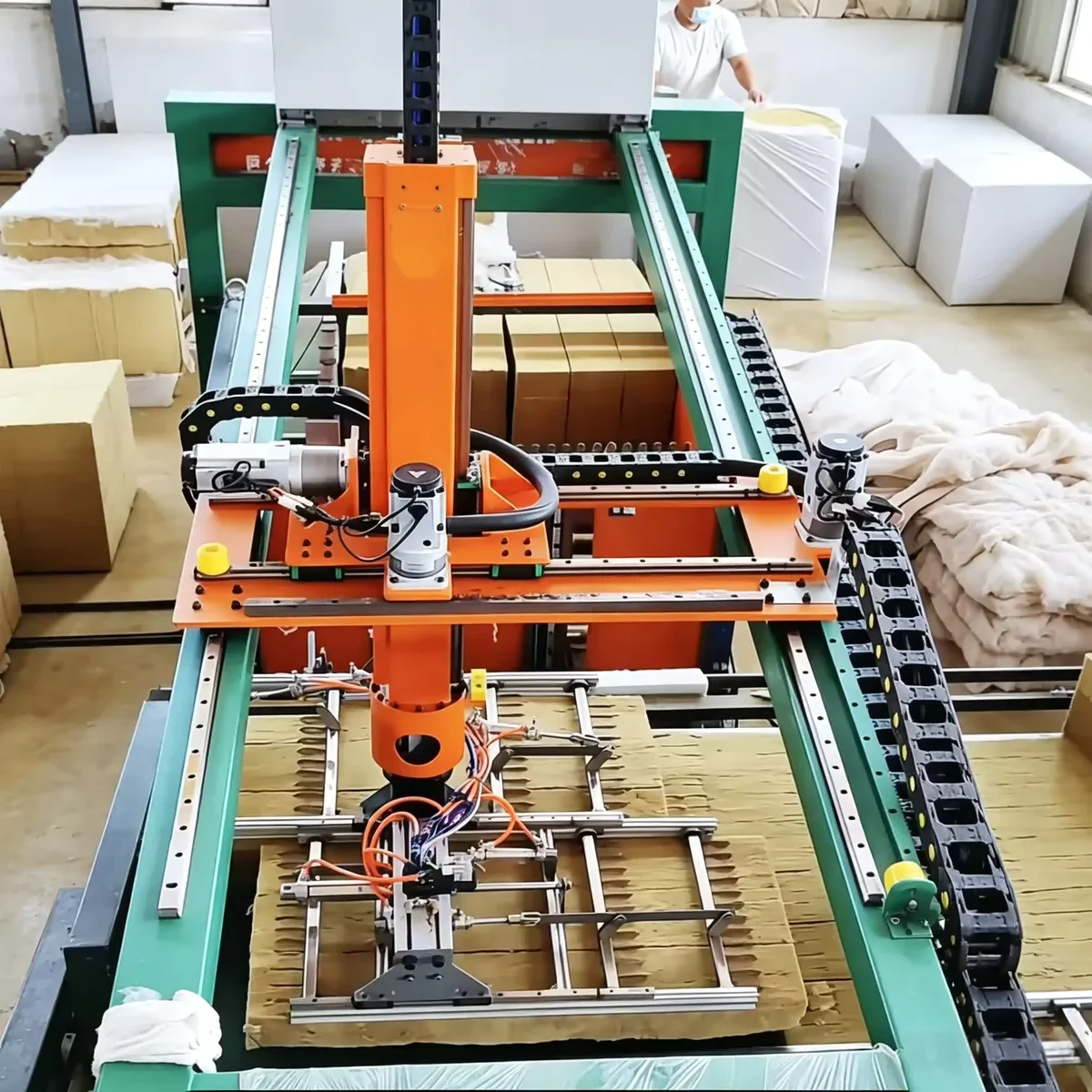

The hero follows this actual equipment structure.The green rail frame, orange multi-axis carriage, cable chains and pneumatic end tooling are taken from the manufacturer’s machine prototype.
Machine focus 02

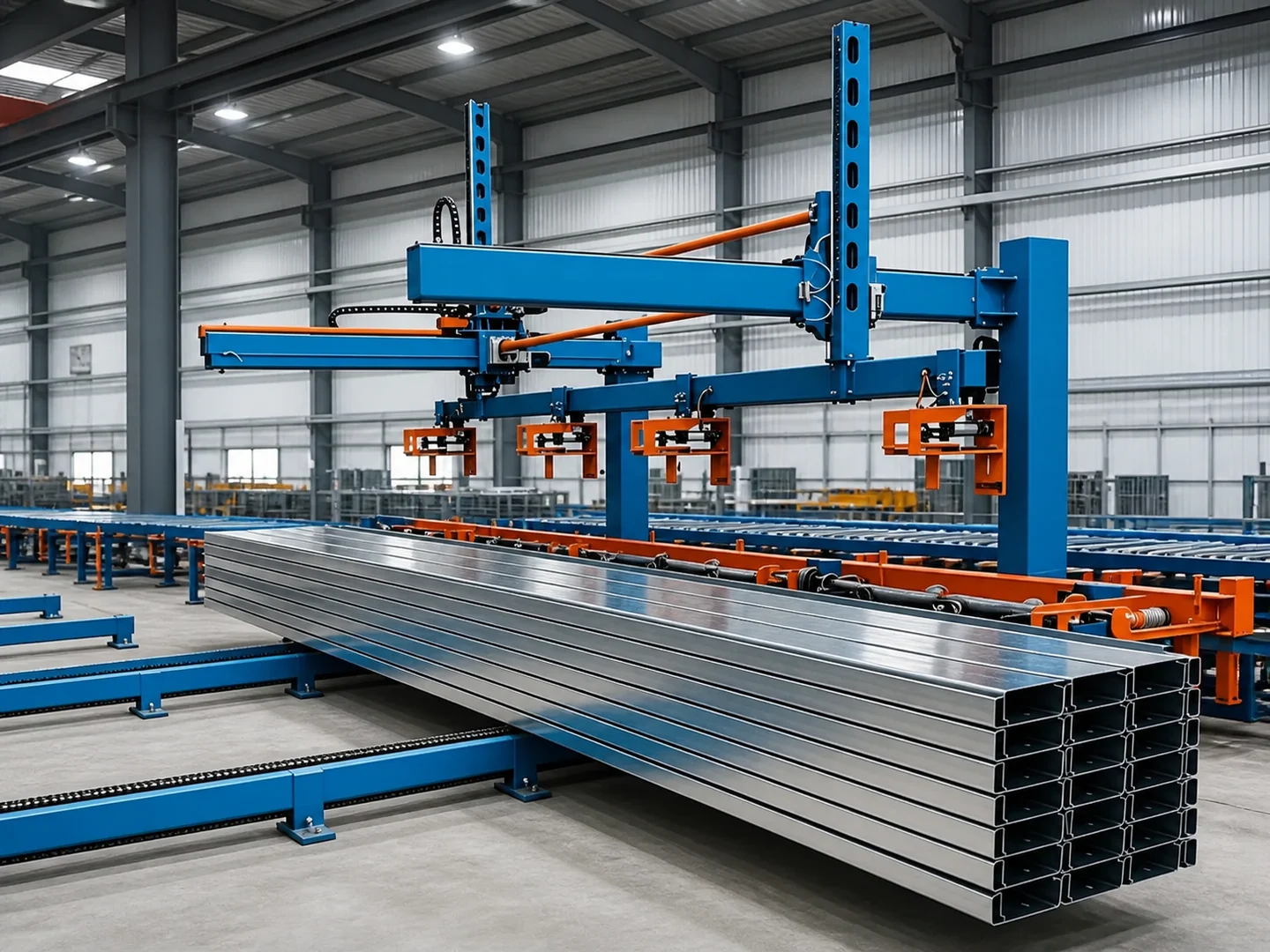

Automatic C/Z Purlin StackerReceive formed sections from the line and organize them for downstream handling.Profile handling
Stack long sections in a controlled sequence.
The turnover-arm stacking arrangement is matched to C- or Z-section dimensions, discharge height, bundle logic and conveyor arrangement. The aim is a stable handoff from forming to collection—not a one-size-fits-all robot cell.
Discuss your purlin line- Workpiece
- C and Z steel purlins
- Process
- Receiving, aligning and stacking
- Project data
- Profile, length, output and bundle plan
Machine catalogue
Four series. Ten machine families.
Names and published parameters follow the manufacturer presentations, gantry stacker document and PE wrapping specification. Open any machine to review its documented configuration and project inputs.
Start with the product, then prepare your project inputs. TXT downloads are blank input records. The S04 gantry stacker has an English PDF brochure. Browse all machines · Project input sheets · Compare specifications
01 / FEEDING SERIES
Material feeding and placement
Move rock wool or panel materials into the production flow using a gantry, articulated robot or integrated feeding system.

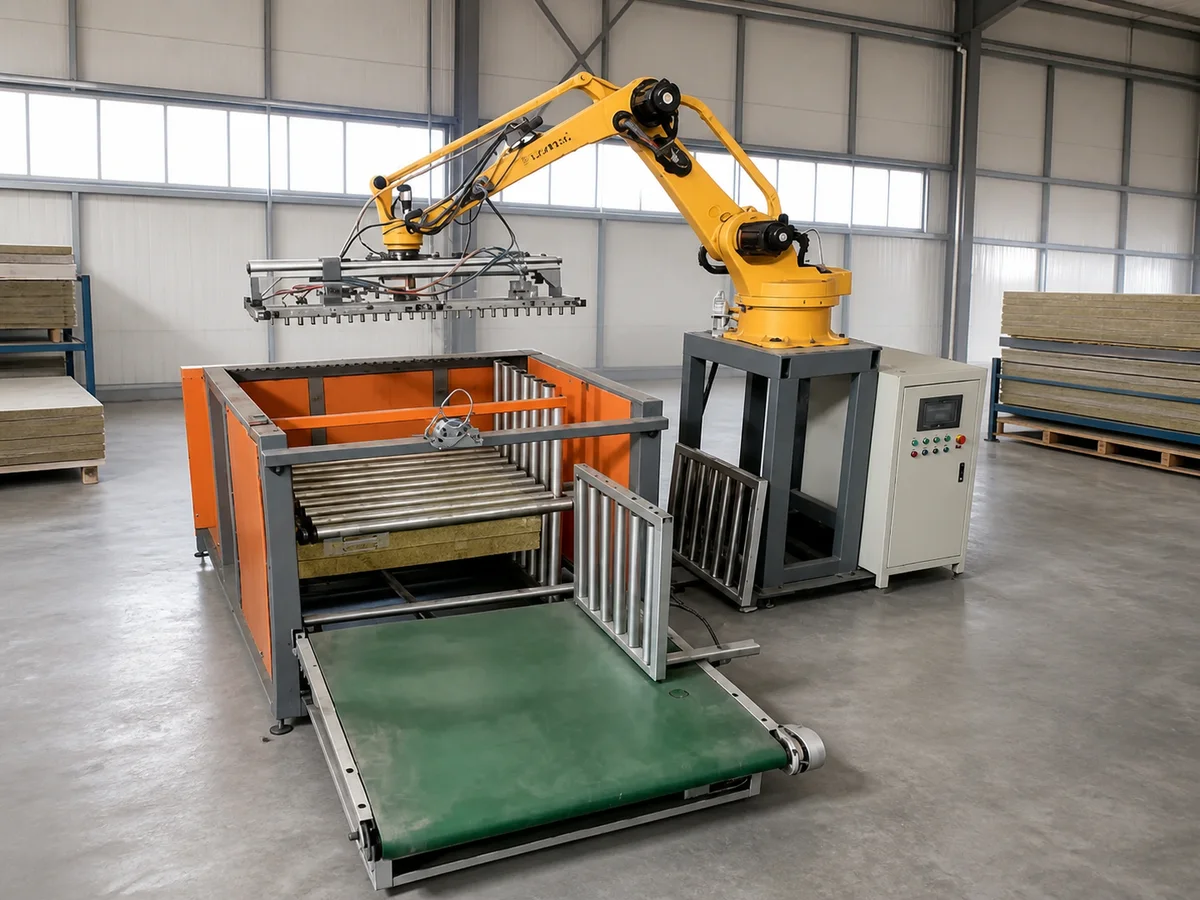

Robotic Arm Rock Wool Continuation Machine
Four axes, 30 kg payload and ±0.05 mm repeat positioning.
View specifications →

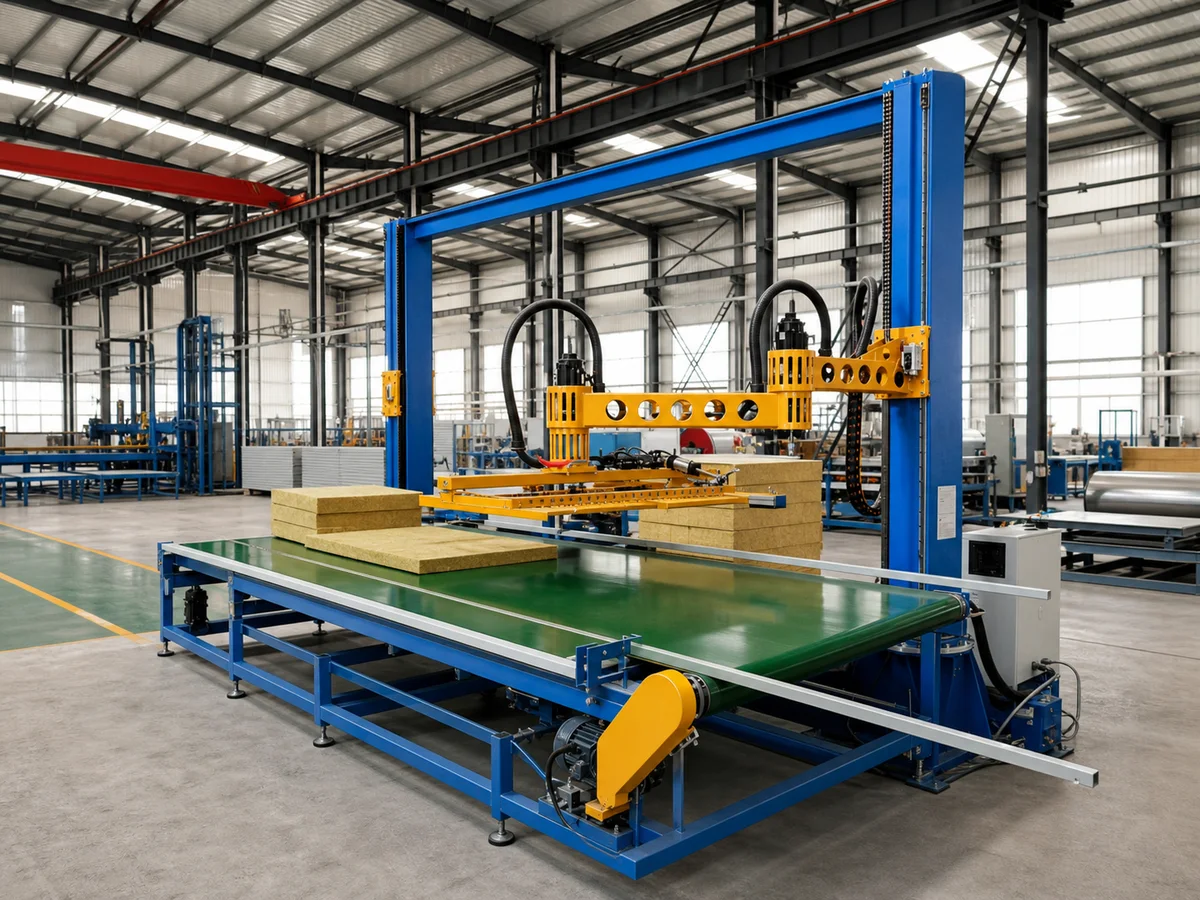

Column-Type Integrated Panel Feeding Machine
Four-axis servo feeding for multiple insulation and board materials.
View specifications →02 / STACKING SERIES
Panel and profile stacking
Receive products from the line, align them and prepare consistent stacks for transfer or storage.

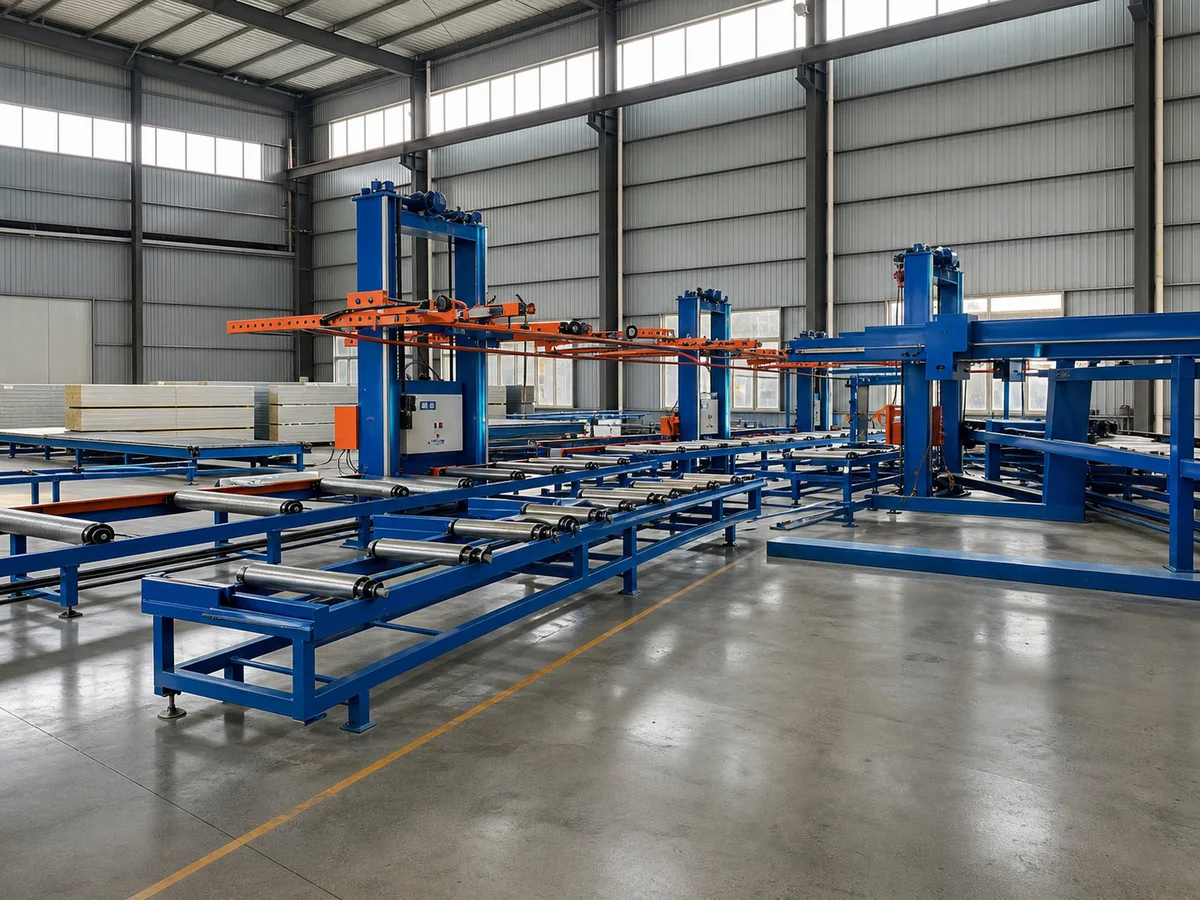

Automatic Sandwich Panel Stacker
Turnover and non-turnover configurations; up to 2,500 mm stack height.
View specifications →

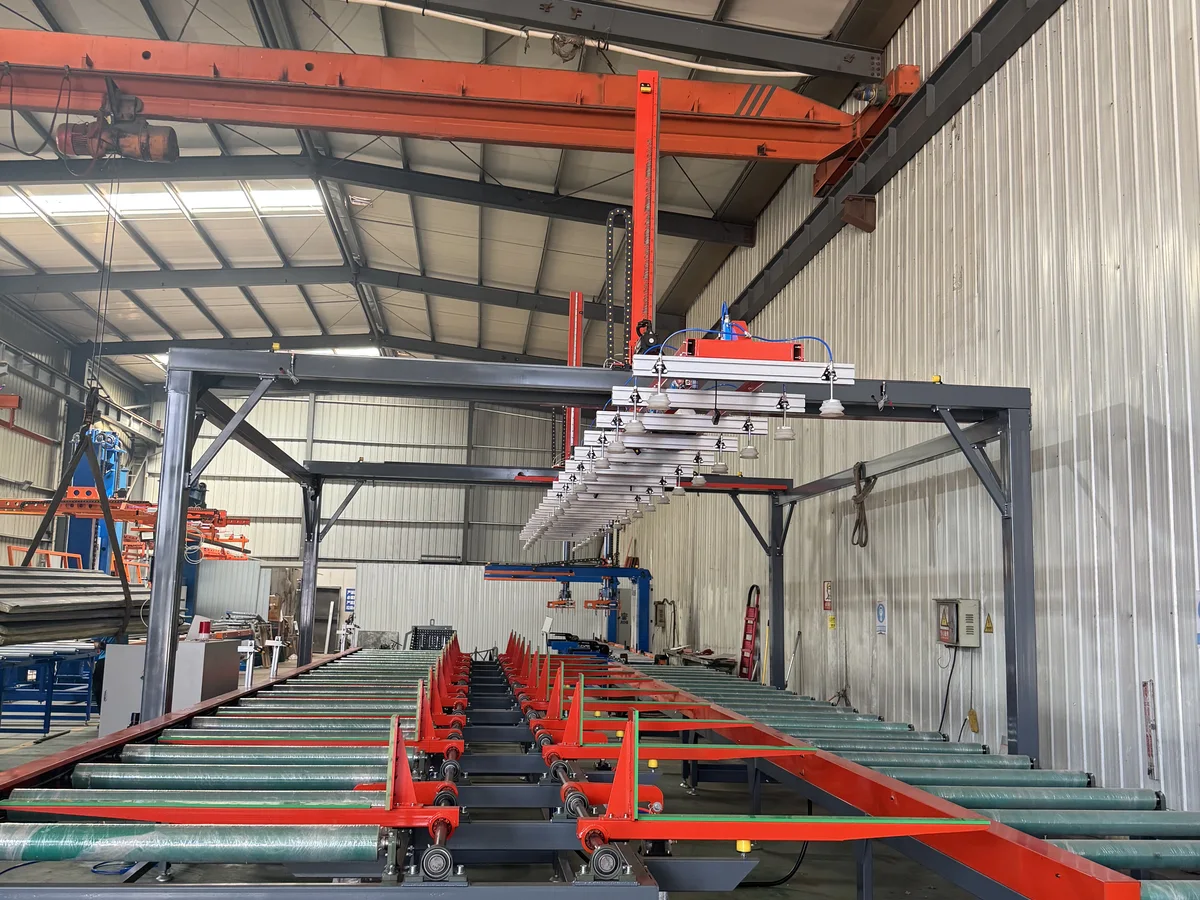

Gantry Flipping & Stacking Machine
Vacuum pickup, flipping and stacking for sandwich panels. See the actual machine video above.
View specifications →Automatic C/Z Purlin Turnover-Arm Stacker
Model MCZ-Z-400-10 · C/U/Z profiles: 3–13 m long, 100–400 mm wide and 1.5–5 mm thick.
Maximum lifting weight per individual profile: 300 kg. Do not select this model if any individual profile weighs more than 300 kg.
View specifications →

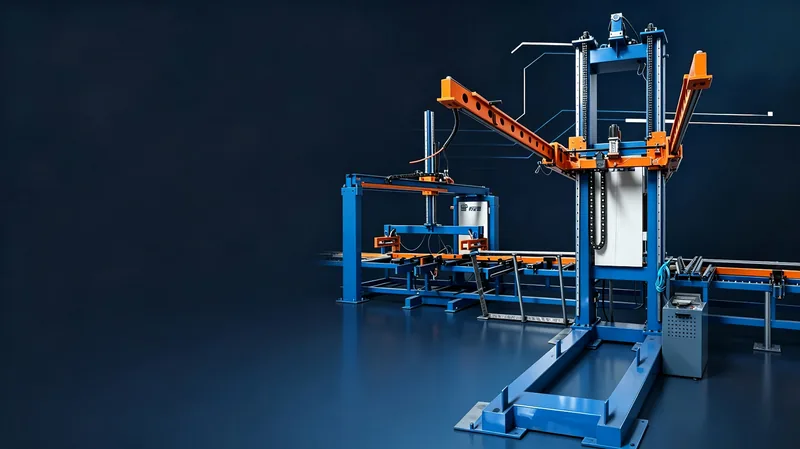

Automatic Floor Deck Turnover Stacker
Mechanical turnover for floor deck sheets. Length 6–12 m; nominal cycle approx. 25 s; width entries 575 / 600 mm.
View specifications →Wrap the complete panel stack.
Full-stack PE packaging is a separate downstream step after stacking. Compare the equipment view with the wrapping sequence in our product video.

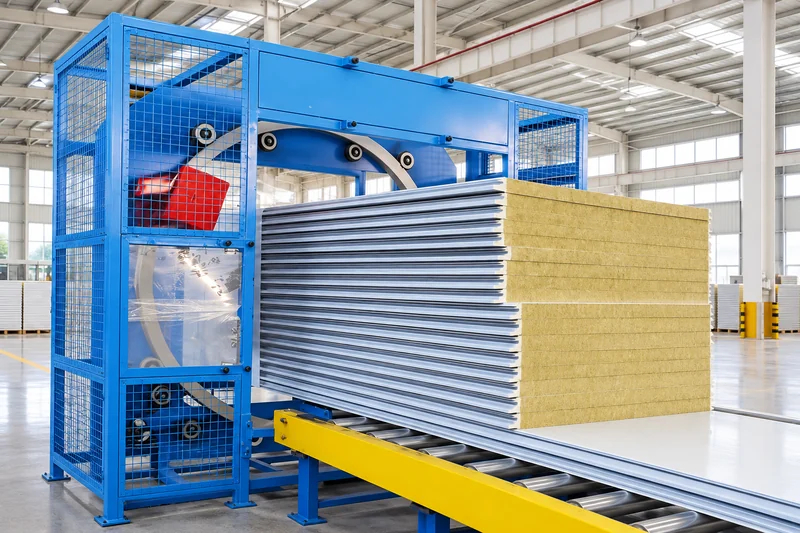

Full-Stack PE Wrapping Machine
Horizontal orbital wrapping for complete sandwich and composite panel stacks. Two 16 m roller conveyors and a documented 3,000 kg effective load; stack dimensions and handover conditions are reviewed for each project.
Watch on YouTube ↗
03 / WELDING SERIES
Dedicated component welding
Purpose-built fixtures and welding sequences for repetitive steel-structure components.

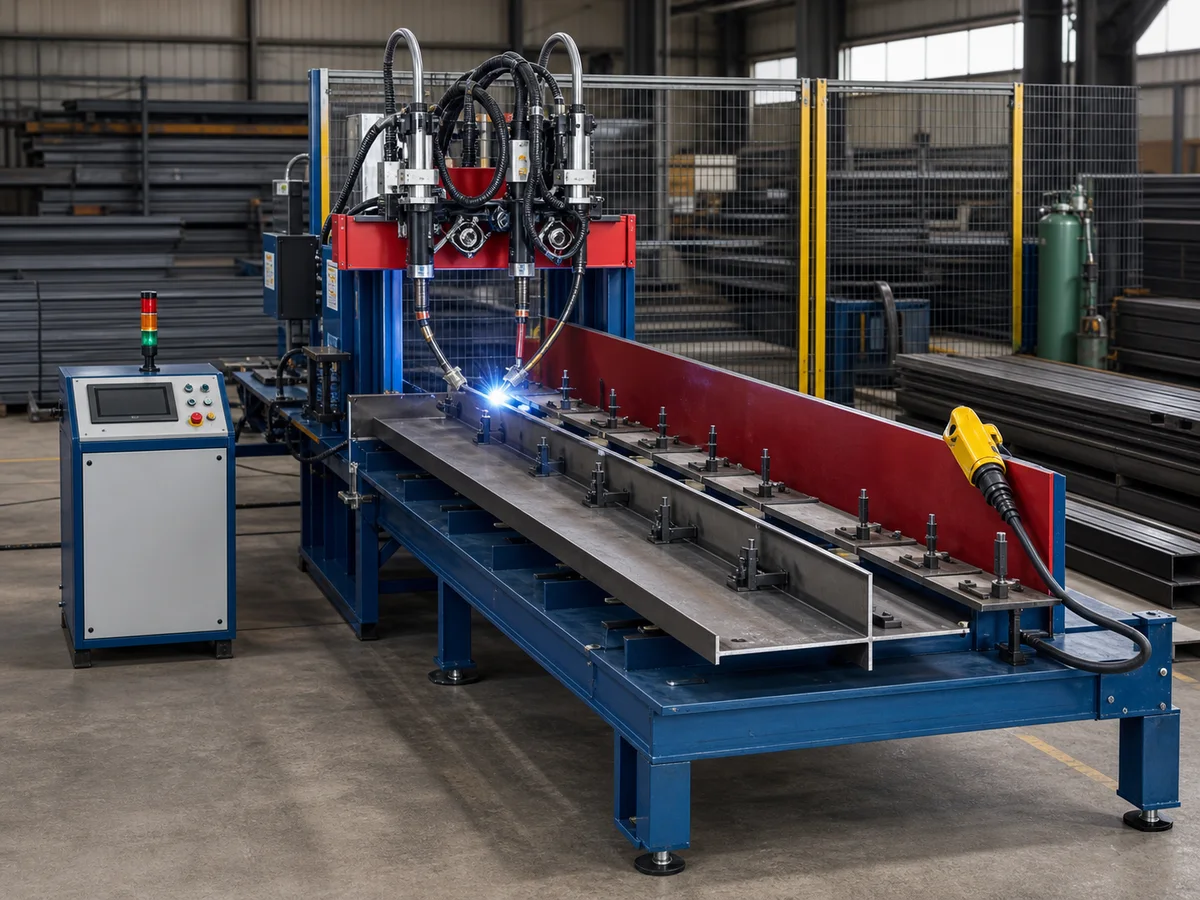

Automatic Purlin Cleat Plate Welding Machine
Two 350 A welding units; adjustable speed around 1,500 mm/min.
View specifications →

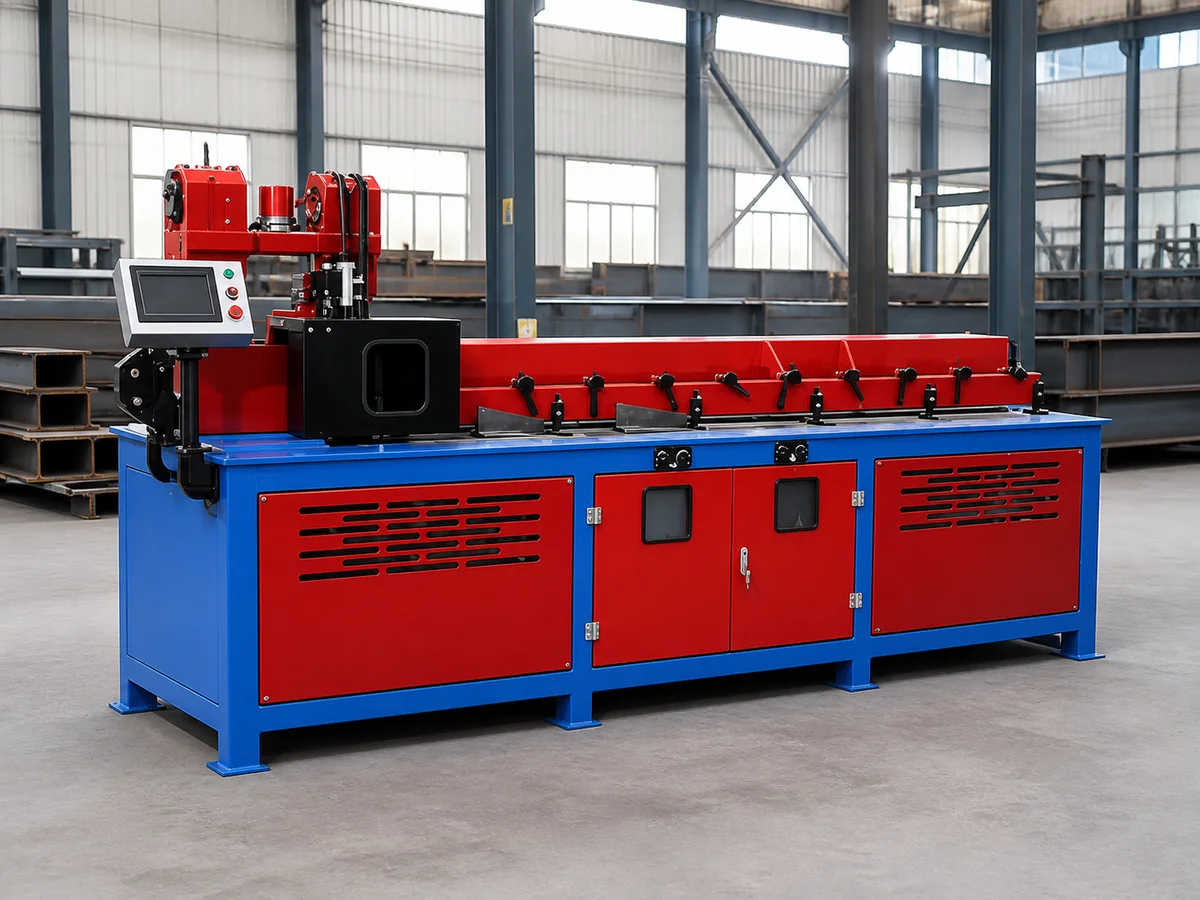

Tie-Rod Cutting & Welding Machines
Integrated or welding-only configurations for 2,500–9,000 mm parts.
View specifications →Line solutions
Connect stacking to PE wrapping.
A proposed sandwich-panel end-of-line arrangement: position the panel, set its face orientation, build the stack and transfer the complete bundle inline to a PE wrapper.
Project process
Start with the line data.
Share the workpiece
Product type, dimensions, material and required handling direction.
Map the line
Line speed, discharge height, available footprint and connection points.
Confirm the sequence
Feeding, transfer, stacking or welding steps and acceptance requirements.
Build and test
Equipment production, trial run, shipment preparation and support plan.
Company profile
A machinery team in Hebei, China.
Review the supplier and project scope.
Check the company information, manufacturing approach, qualification records, project references and delivery scope before discussing a configuration.
Buying guides
Plan your automation project.
Practical guides to rock wool feeding, panel handling, profile stacking and existing-line integration.
Explore the buying guides →Project inquiry
Send the data needed to review your line.
Include the product, dimensions, line speed, layout and the manual step you want to automate. Submit the form to email Tony directly. You can also contact him by phone, WhatsApp or WeChat.
